Minalyser

Elemental Cross Belt Analyser

The ScanMin Minalyser™ is FAST NEUTRON DUAL GAMMA ACTIVATION ANALYSIS (FNDGAA) Elemental Analyser. The analyser uses a high energy AmBe241 radionuclide neutron source, which irradiates ALL the material on the belt as result of the temporary excitation of the atoms in the material. This provide opportunity to measure two physical reactions:
  • Neutron Inelastic Scatter (NIS)
  • Thermal Neutron Capture (TNS)
The source life is 432 years which ensures no source top up during the lifetime of the analyser. This dramatically reduces the OpEx costs. ScanMin’s patented double decker detector system measures the Gamma Rays emitted by the NIS and TNC reactions above and below the conveyor, compensating for any mass variation on the belt. Each element will have a unique set of Gamma Ray spectrums for NIS and TNC. By selecting Regions of Interest (ROI) the ScanMin team can identify the Element and quantify its concentration.
Download Tech Sheet

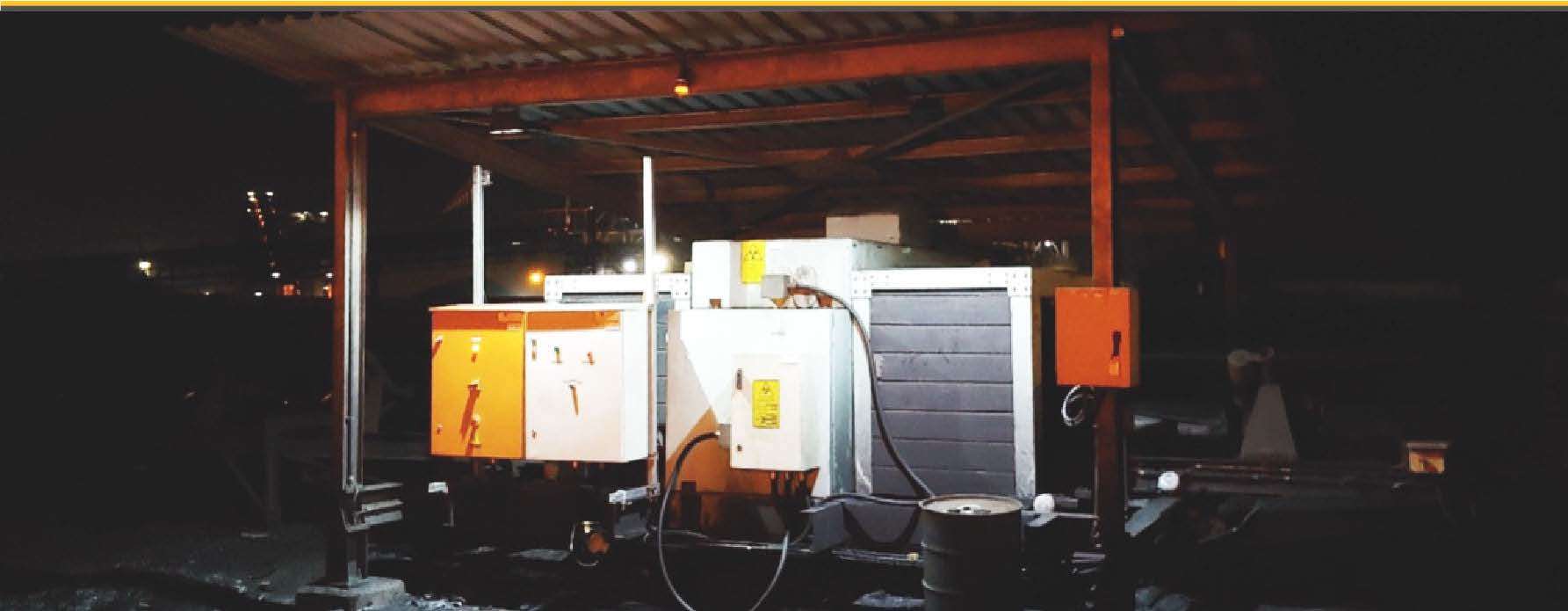

The ScanMin Minalyser™ analyser has the ability to analyse the bulk material on a conveyor belt. It is a rugged design that can operate in most industrial environments. The analyser can be used in a wide range of applications.
Real-time results assist operators and plant managers with active process control, quality control and contractual compliance.

Certification & SAHPRA

  • Import
  • Export
  • Manufacturing

Applications

  • Elemental concentration
  • Mineralogy identification
  • Total moisture ( H , O)
  • Surface moisture can be determined with addition of the H2OScan
  • Volatile matter
  • ROM feed grade
  • Stockpile blending control
  • Quality assurance
  • Contractual compliance
  • Smelter feed – measure concentrate, flux and reductants with one analyser
  • C, H, N and O

Typical Analytes

Iron ore

  • Silicon dioxide
  • Aluminium oxide
  • Calcium oxide
  • Manganese II oxide
  • Sodium oxide
  • Magnesium oxide
  • Sulphur trioxide
  • Zinc oxide
  • Iron
  • Moisture

Fertiliser industries

  • P205
  • Al203
  • SiO2
  • CaO
  • Fe2O3

Copper and other base materials

  • Cu, Fe, S, Ca, C, Al, Mg, K, Si, Mn
The Minalyser’s design, high energy source and double detector system provides significant measurements and maintenance advantages.
Calibration Performance Stable neutron source - No calibration adjustments due to source top up or source replacement.
Variable mass flow compensation.
Unaffected by Mass variation on the Belt.
Measure ORGANIC & IN-ORGANIC elements
Maintenance Few moving parts.
No Wear Parts.
No Chilling or Cooling and associated consumables such as Nitrogen.
Digital Temperature Controlled Electronics.
Safety Automatic source drive control. Retracts source to Safe Space on shutdown. Shielding makes analyser safe for personnel in close proximity. Approved in Canada, Western Australia, South Africa.
Source Life 432 Year Half-life.
No source top up required for the entirety of the installation.
Design Rugged design and wear resistant.
Futureproof product.
